SPEC NO: DSAM9667 REV NO: V.1A DATE: APR/20/2013
PAGE: 1 OF 7
APPROVED: WYNEC CHECKED: Joe Lee DRAWN: Q.M.Chen ERP:
1301000160
25.4mm (1.0 INCH) SINGLE DIGIT NUMERIC
DISPLAY
Part Number: SA10-21GWA Green
Features
』
1.0 inch digit height.
』
Low current operation.
』
Excellent character appearance.
』
High light output.
』
Easy mounting on P.C. boards or sockets.
』
Mechanically rugged.
』
Standard : gray face, white segment.
』
RoHS compliant.
Description
The Green source color devices are made with Gallium
Phosphide Green Light Emitting Diode.

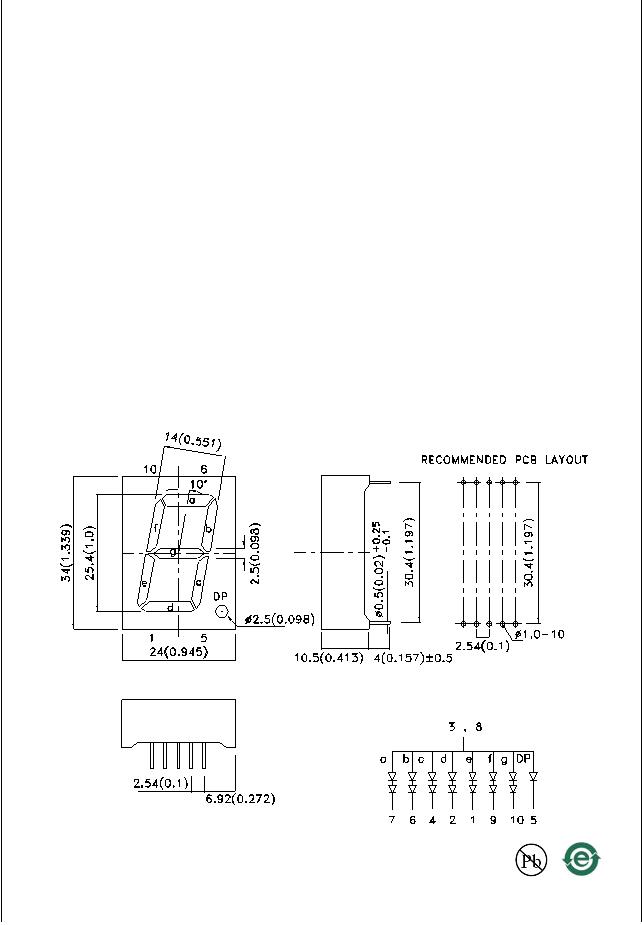

Package Dimensions& Internal Circuit Diagram
Notes:
1. All dimensions are in millimeters (inches), Tolerance is ± 0.25(0.01")unless otherwise noted.
2. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.
